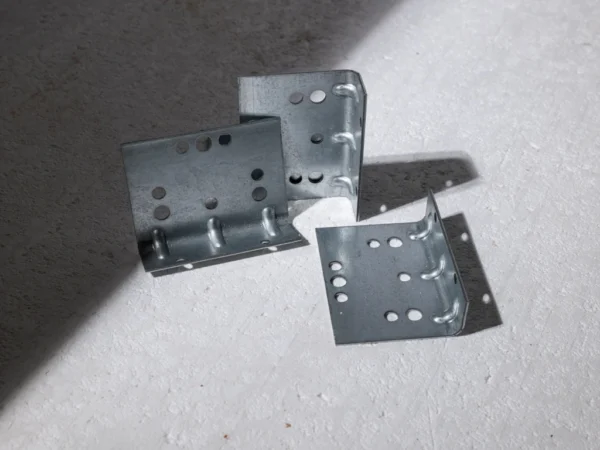

Reinforcing bracket large metal

For Blokko – hinged shutter installation
Packaging unit: 1 piece

SKU: 677 Categories: Accessories, Reinforcement angle

The reinforcement brackets are part of the Blokko folding shutter system. The size of the reinforcement bracket must be selected to match the size of the Blokko.

Speziell abgestimmt zur Bearbeitung von Compacfoam Materialen sämtlicher Klassen.

Für Tischkreissägen, Holzbearbeitungsmaschinen, Handkreissägen, Tauchsägen.

Sintered highly compressed EPS	CF100	CF125	CF150	CF200	CF300	CF400	CF200eco	Standard
Gesintertes hochverdichtetes EPS								Standard
Compressive strength (N/mm²)
for 10% compression	1,13	1,64	1,95	3,53	5,85	11,03	2,62	EN 826
for 2% compression	0,73	0,81	0,98	1,93	3,01	4,31	1,54	EN 826
Characteristic compressive strength (N/mm²)	1,02	1,48	1,55	3,19	5,19	9,97	2,37	EN 14358
Rated value of compressive strength (N/mm²)	0,71	1,02	1,07	2,21	3,59	6,90	1,42
Safety factors	ym=^1,3/k mod=^0,9								ym=^1,5/k mod=^0,9
Calculation value for Serviceability (N/mm²)	0,62	0,69	0,83	1,64	2,56	3,66	1,23
E-modulus (N/mm²)	28,7	38,4	45,5	99,4	168,7	269,8	73	EN 826
Screw extraction
Screw extraction* ⌀ 7.5mm (N)	837	919	1.179	1.875	2.677	4.047	1.380	i.a. EN 14358
Screw cross tension* ⌀ 7.5mm (N)	296	394	493	542	1.012	1.333	954	i.a. EN 14358
Screw extraction* ⌀ 4.5mm (N)	505	565	747	979	1.729	2.829	701	i.a. EN 14358
Cross bolt tension* ⌀ 4.5mm (N)	103	112	150	214	319	500	320	i.a. EN 14358
Thermal conductivity
Rated value (W/mK)	0,0387	0,0377	0,0423	0,0459	0,0531	0,0650	0,045	EN 12667
Water vapor diffusion resistance coefficient	~25									EN 12086-1
Building material behavior in case of fire	E (B1) schwer entflammbar									EN 13501-1, DIN 4102-1
Max. Water absorption capacity 28 days	~5%									EN 12087

* bei 40 mm Verankerungslänge

** bei 1,5 mm max. Kopfverformung, 40 mm Verankerungslänge, 30 mm Randabstand

*** 3% Langzeitverformung
