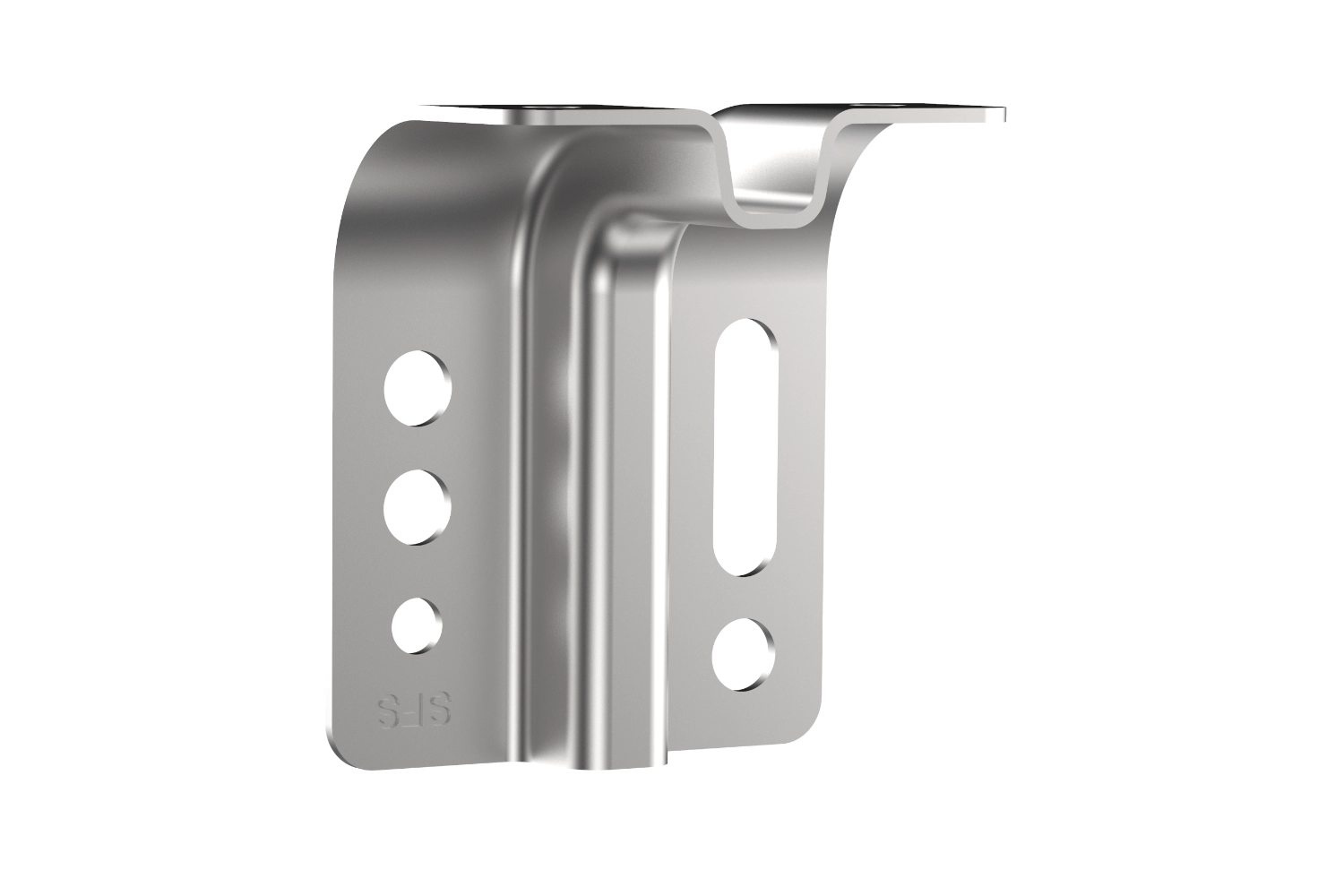

JB-W mounting bracket 70x40mm, 60mm

For fastening Compacfoam

Categories: Mounting bracket, Accessories

With the mounting brackets, the Compacfaom substructure insulation profile, for example, can be easily anchored in the floor.

Specially designed for processing Compacfoam materials of all classes.

For circular table saws, woodworking machines, hand-held circular saws, plunge-cut saws.

Dimensions	70 × 40 × 60 mm

Sintered highly compressed EPS	CF100	CF125	CF150	CF200	CF300	CF400	CF200eco	Standard
Sintered highly compressed EPS								Standard
Compressive strength (N/mm2)
for 10% compression	1,4	1,65	1,9	3,5	6,4	9,7	1,85	EN 826
for 2% compression	0,8	1,1	1,32	1,48	3,24	4,0	0,98	based on this
Permissible stress (N/mm2) with 2% long-term deformation and permanent load	0,56	0,78	0,83	1,01	2,39***	4,18***	0,64	internal
Screw extraction
Screw extraction* ⌀ 4.5mm (N)	505	565	747	979	1729	2829	-	internal
Screw extraction* ⌀ 7.5mm (N)	837	919	1179	1875	2677	4047	825	internal
in transverse direction** ⌀ 4.5mm (N)	103	112	150	214	319	500	-	internal
in transverse direction** ⌀ 7.5mm (N)	296	394	493	542	1012	1333	-	internal
Thermal conductivity
Rated value (W/mK)	0,0387	0,0377	0,0423	0,0459	0,0531	0,0650	0,045	EN 12667
Density (kg/m3), +/- 10kg/m3	110	135	160	210	310	410	200	internal
Water vapor diffusion resistance coefficient	~25							#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	EN 12086-1
Building material behavior in case of fire	E (B1) flame retardant							#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	EN 13501-1, DIN 4102-1
Max. Water absorption capacity 28 days	~5%							#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	#colspan#	EN 12087

* with 40 mm anchoring length

** with 1.5 mm max. head deformation, 40 mm anchoring length, 30 mm edge distance

*** 3% Long-term deformation
