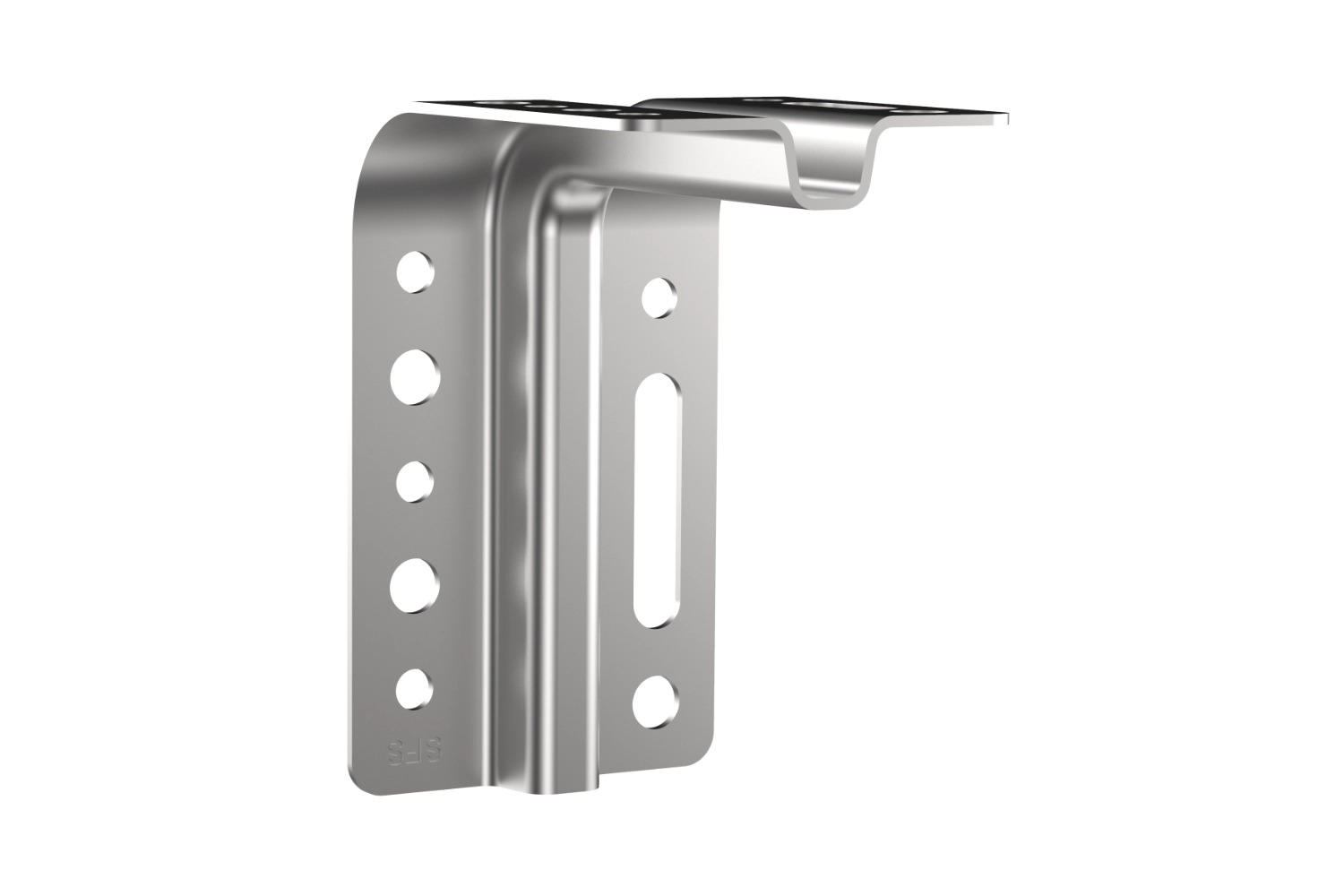

JB-W mounting bracket 100x80mm, 60mm

For fastening Compacfoam

Categories: Mounting bracket, Accessories

With the mounting brackets, the Compacfaom substructure insulation profile, for example, can be easily anchored in the floor.

Specially designed for processing Compacfoam materials of all classes.

For circular table saws, woodworking machines, hand-held circular saws, plunge-cut saws.

Dimensions	100 × 80 × 60 mm

Sintered highly compressed EPS	CF100	CF125	CF150	CF200	CF300	CF400	CF200eco	Standard
Sintered highly compressed EPS								Standard
Compressive strength (N/mm²)
for 10% compression	1,13	1,64	1,95	3,53	5,85	11,03	2,62	EN 826
for 2% compression	0,73	0,81	0,98	1,93	3,01	4,31	1,54	EN 826
Characteristic compressive strength (N/mm²)	1,02	1,48	1,55	3,19	5,19	9,97	2,37	EN 14358
Rated value of compressive strength (N/mm²)	0,71	1,02	1,07	2,21	3,59	6,90	1,42
Safety factors	ym=^1,3/k mod=^0,9								ym=^1,5/k mod=^0,9
Calculation value for Serviceability (N/mm²)	0,62	0,69	0,83	1,64	2,56	3,66	1,23
E-modulus (N/mm²)	28,7	38,4	45,5	99,4	168,7	269,8	73	EN 826
Screw extraction
Screw extraction* ⌀ 7.5mm (N)	837	919	1.179	1.875	2.677	4.047	1.380	i.a. EN 14358
Screw cross tension* ⌀ 7.5mm (N)	296	394	493	542	1.012	1.333	954	i.a. EN 14358
Screw extraction* ⌀ 4.5mm (N)	505	565	747	979	1.729	2.829	701	i.a. EN 14358
Cross bolt tension* ⌀ 4.5mm (N)	103	112	150	214	319	500	320	i.a. EN 14358
Thermal conductivity
Rated value (W/mK)	0,0387	0,0377	0,0423	0,0459	0,0531	0,0650	0,045	EN 12667
Water vapor diffusion resistance coefficient	~25									EN 12086-1
Building material behavior in case of fire	E (B1) flame retardant									EN 13501-1, DIN 4102-1
Max. Water absorption capacity 28 days	~5%									EN 12087

* with 40 mm anchoring length

** with 1.5 mm max. head deformation, 40 mm anchoring length, 30 mm edge distance

*** 3% Long-term deformation
