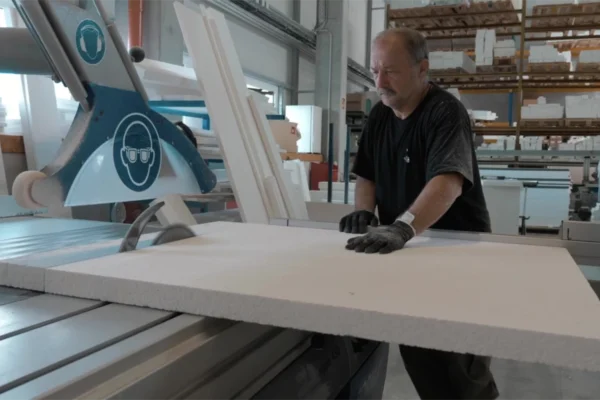

Construction insulation board CFeco200 Recycling

Plate for self-cutting

Standard dimensions: 2350x1160mm Please select the desired thickness or select “individual” to enter your individual dimensions.

PVC Option *

PVC Color

Total:  0,00
SKU: CFeco200 Recycling Category:

CFeco can be used wherever a moisture-resistant construction material is required but wood-based materials are not a solution.

100% recycling, 100% unmixed, 100% quality

CFeco’s raw material is EPS offcuts, of which large quantities are produced every day. This means that the material is always available and economical. As a pure, recyclable upcycling product, CFeco is a modern material for the future. Because environmental protection means keeping it in the cycle instead of disposing of it.

We produce without propellants and adhesives, without questionable additives or fossil fuels. This means there are no harmful emissions. CFeco is insensitive to climatic influences, but still breathable and open to diffusion.

Advantages:

  • High strength
  • Excellent thermal insulation
  • Moisture resistant
  • Easy to process
  • 100% Recycling
  • 100% single-variety
  • Sustainable
  • Pollutant-free – without propellants, adhesives or fossil fuels

COMPACFOAM is perfect for the following applications:

  • Pre-wall installations
  • Window sill connection insulation profiles
  • Substructure insulation profiles
  • Frame extensions
  • Insulation core for door panels and window scantlings
  • Installation in the insulation level
  • Thermal bridge-free awning installation
  • Hinged and sliding shutter installation
  • Thermal separations of façade systems and in steel construction
  • Panel edge reinforcement
  • Vehicle construction

100% Recycled product

Dimensions N/A
Thickness

, , , , , , , , , ,

Sintered highly compressed EPSCF100CF125CF150CF200CF300CF400CF200ecoStandard
Gesintertes hochverdichtetes EPSIconIconIconIconIconIconIconStandard
Compressive strength (N/mm²)
for 10% compression 1,131,641,953,535,8511,032,62 EN 826
for 2% compression0,730,810,981,933,014,311,54EN 826
Characteristic compressive strength (N/mm²)1,021,481,55 3,195,199,972,37EN 14358
Rated value of compressive strength (N/mm²)0,711,021,07 2,213,596,901,42
Safety factorsym=1,3/k mod=0,9ym=1,5/k mod=0,9
Calculation value for Serviceability (N/mm²)0,620,690,831,642,563,661,23
E-modulus (N/mm²)28,738,445,599,4168,7269,873EN 826
Screw extraction
Screw extraction* ⌀ 7.5mm (N)8379191.1791.8752.6774.047 1.380i.a. EN 14358
Screw cross tension* ⌀ 7.5mm (N)2963944935421.0121.333954i.a. EN 14358
Screw extraction* ⌀ 4.5mm (N)5055657479791.7292.829701i.a. EN 14358
Cross bolt tension* ⌀ 4.5mm (N)103112150214319500320i.a. EN 14358
Thermal conductivity
Rated value (W/mK)0,03870,03770,04230,04590,05310,06500,045EN 12667
Water vapor diffusion resistance coefficient~25EN 12086-1
Building material behavior in case of fireE (B1) schwer entflammbarEN 13501-1,
DIN 4102-1
Max. Water absorption capacity 28 days~5%EN 12087

* with 40 mm anchoring length

** with 1.5 mm max. head deformation, 40 mm anchoring length, 30 mm edge distance

*** 3% Long-term deformation
