Name: CF200 Plate
SKU: CF200
Availability: InStock

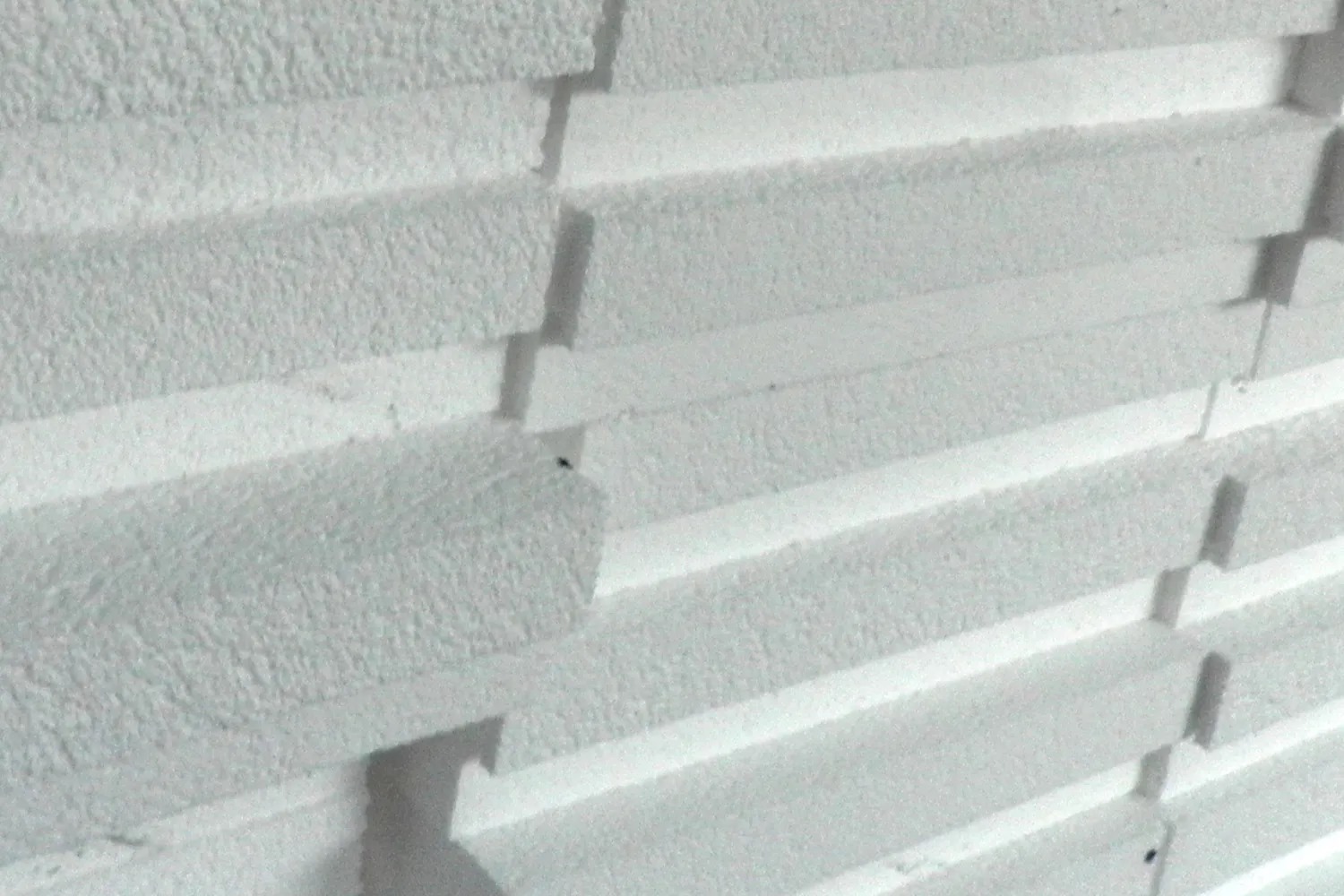

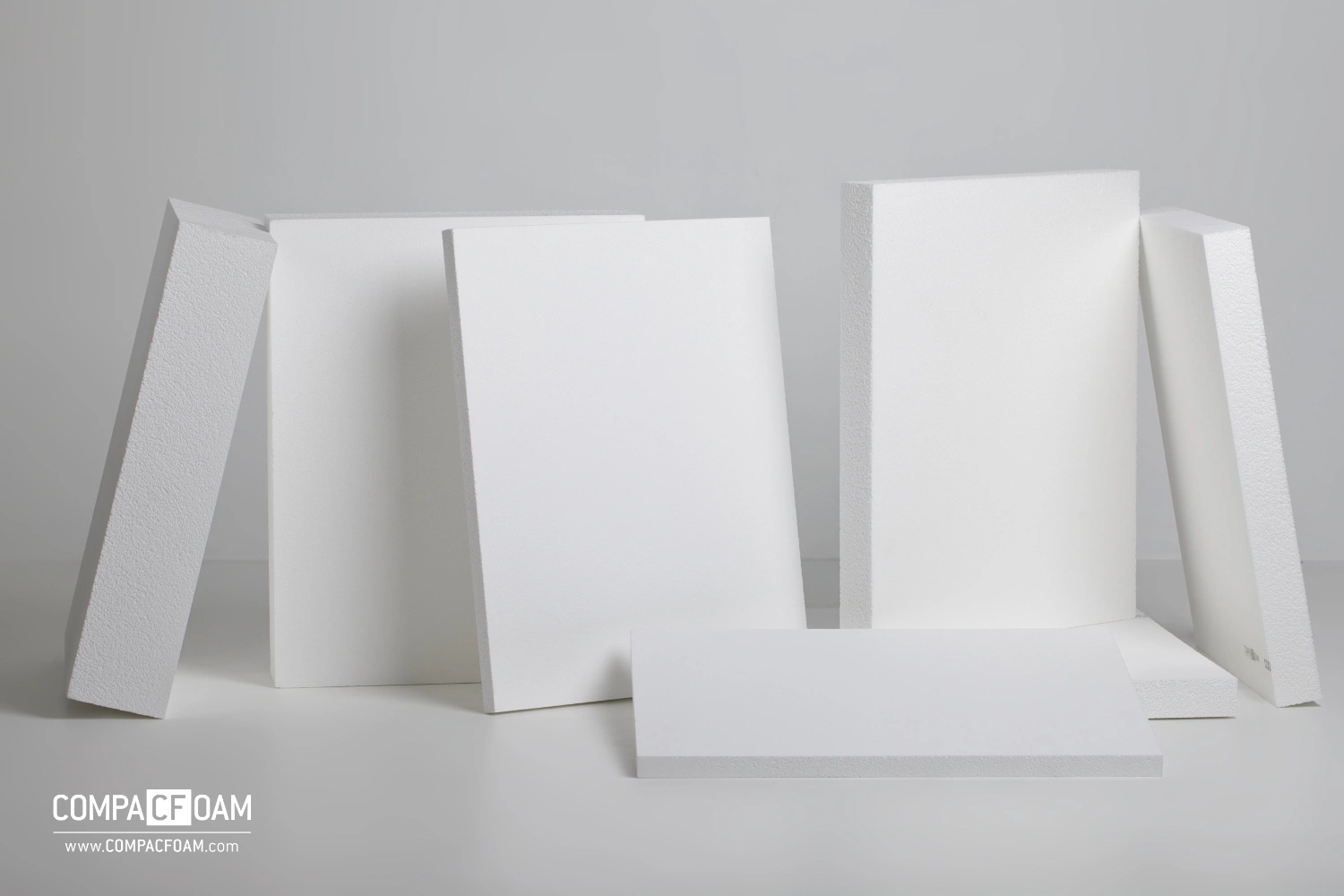

Plate for self-cutting

Standard dimensions: 1950x660mm Please select the desired thickness or select “individual” to enter your individual dimensions.

Thickness

Clear

Length in mm*

Width in mm

Thickness in mm

Comment

Total: € 0,00

SKU: CF200 Category: Plates

All products

The CF material classes differ primarily in terms of compressive strength, thermal conductivity and screw extraction. To determine the optimum material class for your application, please use the table in the Data tab. We would also be happy to advise you personally.

COMPACFOAM can be used wherever a moisture-resistant construction material is required but wood-based materials are not a solution.

We produce without propellants and adhesives, without questionable additives or fossil fuels. This means there are no harmful emissions. COMPACFOAM is insensitive to climatic influences, but still diffusion-open and breathable.

Information on processing

Advantages:

High strength
Excellent thermal insulation
Moisture resistant
climate resistant
Easy to process
100% single-variety
Sustainable
Pollutant-free – without propellants, adhesives or fossil fuels

COMPACFOAM is perfect for the following applications:

Pre-wall installations
Window sill connection insulation profiles
Substructure insulation profiles
Frame extensions
Panel edge reinforcement
Vehicle construction

100% Recycled product

Dimensions	N/A
Thickness	custom, 10 mm, 15 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm, 60 mm, 70 mm, 80 mm, 90 mm, 100 mm

Sintered highly compressed EPS	CF100	CF125	CF150	CF200	CF300	CF400	CF200eco	Standard
Gesintertes hochverdichtetes EPS								Standard
Compressive strength (N/mm²)
for 10% compression	1,13	1,64	1,95	3,53	5,85	11,03	2,62	EN 826
for 2% compression	0,73	0,81	0,98	1,93	3,01	4,31	1,54	EN 826
Characteristic compressive strength (N/mm²)	1,02	1,48	1,55	3,19	5,19	9,97	2,37	EN 14358
Rated value of compressive strength (N/mm²)	0,71	1,02	1,07	2,21	3,59	6,90	1,42
Safety factors	ym=^1,3/k mod=^0,9								ym=^1,5/k mod=^0,9
Calculation value for Serviceability (N/mm²)	0,62	0,69	0,83	1,64	2,56	3,66	1,23
E-modulus (N/mm²)	28,7	38,4	45,5	99,4	168,7	269,8	73	EN 826
Screw extraction
Screw extraction* ⌀ 7.5mm (N)	837	919	1.179	1.875	2.677	4.047	1.380	i.a. EN 14358
Screw cross tension* ⌀ 7.5mm (N)	296	394	493	542	1.012	1.333	954	i.a. EN 14358
Screw extraction* ⌀ 4.5mm (N)	505	565	747	979	1.729	2.829	701	i.a. EN 14358
Cross bolt tension* ⌀ 4.5mm (N)	103	112	150	214	319	500	320	i.a. EN 14358
Thermal conductivity
Rated value (W/mK)	0,0387	0,0377	0,0423	0,0459	0,0531	0,0650	0,045	EN 12667
Water vapor diffusion resistance coefficient	~25									EN 12086-1
Building material behavior in case of fire	E (B1) schwer entflammbar									EN 13501-1, DIN 4102-1
Max. Water absorption capacity 28 days	~5%									EN 12087
