Due to the high strength of the COMPACFOAM window sill connection profile, installation with standard window sill screws is possible without any problems.

Suitable products are available for all common systems.

Packaged in boxes of 12 or loose on pallets for larger quantities.

The CF FBA is part of the CF FBA insulation system. This consists of the CF FBA (with or without PVC), the CF insulating wedge for perfect underlining of the external window sill and optionally the CF window sill internal insulation board.

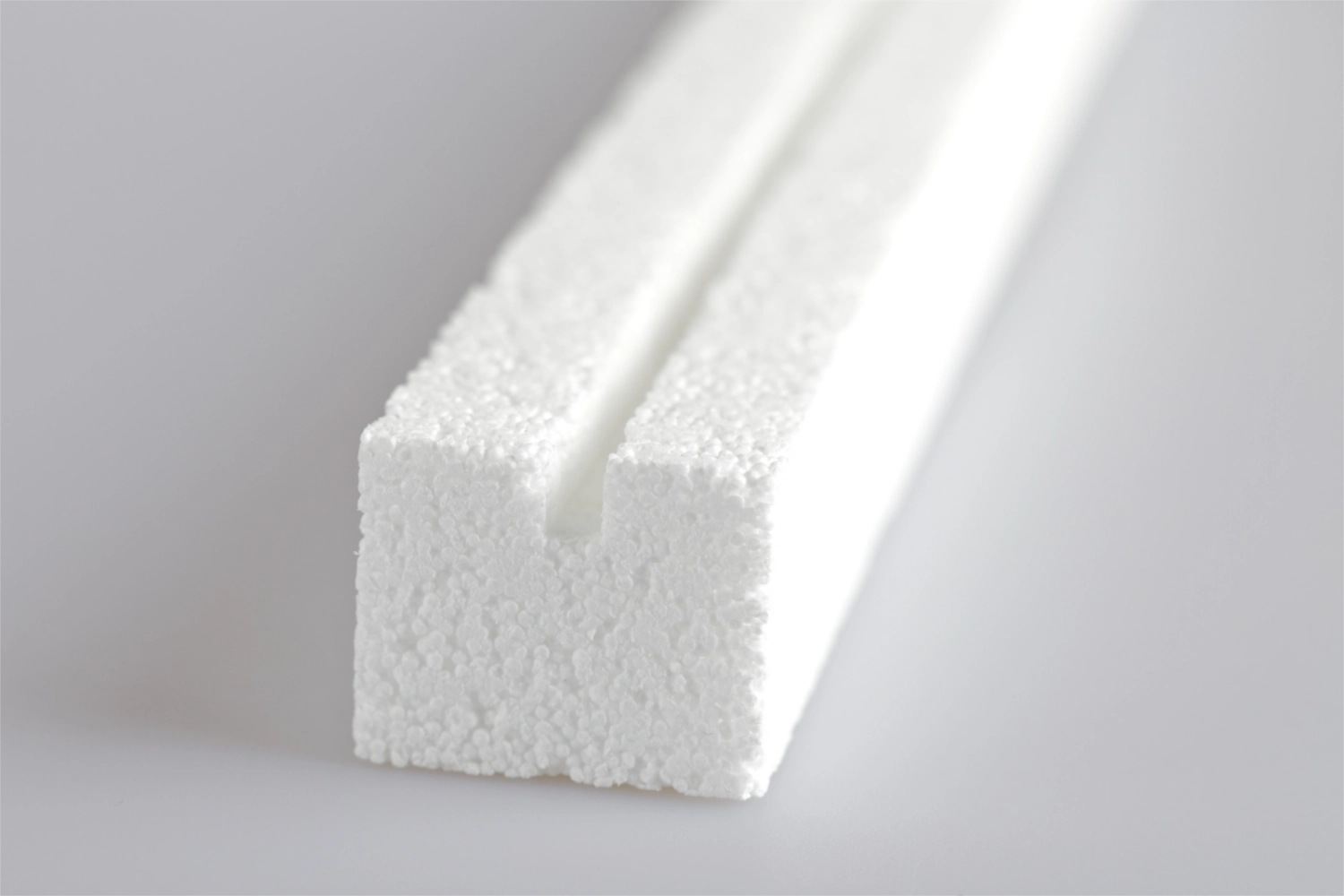

Window sill connection insulation profiles for all common systems with or without 1 mm PVC coating.

Dimensions:
Standard length 2350mm
max. length 6000mm
Special lengths on request

Other:
Counter-milling on one side available for all profile systems.
Alternatively available as sheets for self-cutting: 2350x780x40/50/60mm (L,W,D).

Sintered highly compressed EPS	CF100	CF125	CF150	CF200	CF300	CF400	CF200eco	Standard
Gesintertes hochverdichtetes EPS								Standard
Compressive strength (N/mm²)
for 10% compression	1,13	1,64	1,95	3,53	5,85	11,03	2,62	EN 826
for 2% compression	0,73	0,81	0,98	1,93	3,01	4,31	1,54	EN 826
Characteristic compressive strength (N/mm²)	1,02	1,48	1,55	3,19	5,19	9,97	2,37	EN 14358
Rated value of compressive strength (N/mm²)	0,71	1,02	1,07	2,21	3,59	6,90	1,42
Safety factors	ym=^1,3/k mod=^0,9								ym=^1,5/k mod=^0,9
Calculation value for Serviceability (N/mm²)	0,62	0,69	0,83	1,64	2,56	3,66	1,23
E-modulus (N/mm²)	28,7	38,4	45,5	99,4	168,7	269,8	73	EN 826
Screw extraction
Screw extraction* ⌀ 7.5mm (N)	837	919	1.179	1.875	2.677	4.047	1.380	i.a. EN 14358
Screw cross tension* ⌀ 7.5mm (N)	296	394	493	542	1.012	1.333	954	i.a. EN 14358
Screw extraction* ⌀ 4.5mm (N)	505	565	747	979	1.729	2.829	701	i.a. EN 14358
Cross bolt tension* ⌀ 4.5mm (N)	103	112	150	214	319	500	320	i.a. EN 14358
Thermal conductivity
Rated value (W/mK)	0,0387	0,0377	0,0423	0,0459	0,0531	0,0650	0,045	EN 12667
Water vapor diffusion resistance coefficient	~25									EN 12086-1
Building material behavior in case of fire	E (B1) schwer entflammbar									EN 13501-1, DIN 4102-1
Max. Water absorption capacity 28 days	~5%									EN 12087
