Threshold and frame profiles: The floor inset for doors and floor-to-ceiling elements

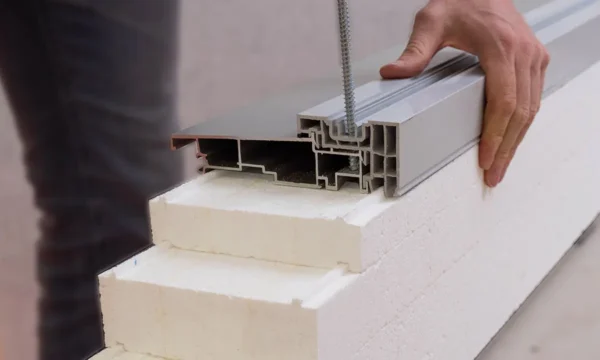

Lift and slide doors: ready-made substructure for all systems

SKU: UBDP Category:

Description

All products

Different stand-off heights can be flexibly achieved using the stacking contour.

Thanks to the high compressive strength, screw-through installation into the unfinished floor is possible. The installation of support brackets is also possible without any problems.

CFeco UDPs are supplied as bar stock and can also be cut to size on request. Alternatively, the standard panel is available for self-cutting.

We can optionally supply the UPD with a 1 mm PVC coating.

Packaging unit in carton or loose on pallets for larger quantities.

Screws and support brackets are available from us.

Floor recess for doors and floor-to-ceiling elements.

Dimensions:
Standard length: 2350mm
Alternative lengths up to 6m possible.

Packaging unit in carton or loose on pallets for larger quantities.

[prod_atts]

Sintered highly compressed EPSCF100CF125CF150CF200CF300CF400CF200ecoStandard
Gesintertes hochverdichtetes EPSIconIconIconIconIconIconIconStandard
Compressive strength (N/mm²)
for 10% compression 1,131,641,953,535,8511,032,62 EN 826
for 2% compression0,730,810,981,933,014,311,54EN 826
Characteristic compressive strength (N/mm²)1,021,481,55 3,195,199,972,37EN 14358
Rated value of compressive strength (N/mm²)0,711,021,07 2,213,596,901,42
Safety factorsym=1,3/k mod=0,9ym=1,5/k mod=0,9
Calculation value for Serviceability (N/mm²)0,620,690,831,642,563,661,23
E-modulus (N/mm²)28,738,445,599,4168,7269,873EN 826
Screw extraction
Screw extraction* ⌀ 7.5mm (N)8379191.1791.8752.6774.047 1.380i.a. EN 14358
Screw cross tension* ⌀ 7.5mm (N)2963944935421.0121.333954i.a. EN 14358
Screw extraction* ⌀ 4.5mm (N)5055657479791.7292.829701i.a. EN 14358
Cross bolt tension* ⌀ 4.5mm (N)103112150214319500320i.a. EN 14358
Thermal conductivity
Rated value (W/mK)0,03870,03770,04230,04590,05310,06500,045EN 12667
Water vapor diffusion resistance coefficient~25EN 12086-1
Building material behavior in case of fireE (B1) schwer entflammbarEN 13501-1,
DIN 4102-1
Max. Water absorption capacity 28 days~5%EN 12087

* with 40 mm anchoring length

** with 1.5 mm max. head deformation, 40 mm anchoring length, 30 mm edge distance

*** 3% Long-term deformation
